Brand: 3M

Color: Rainbow Pack Colors

Features:

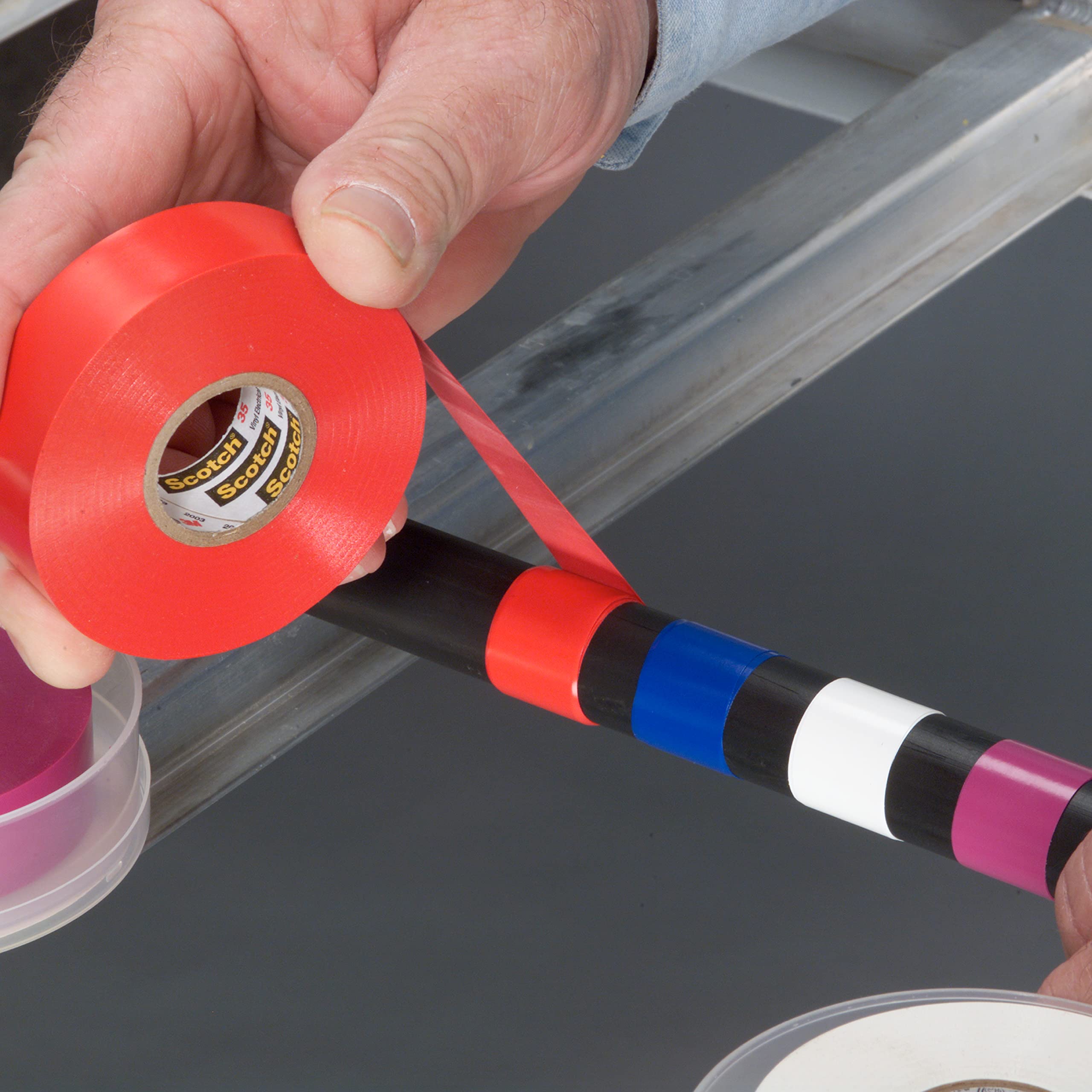

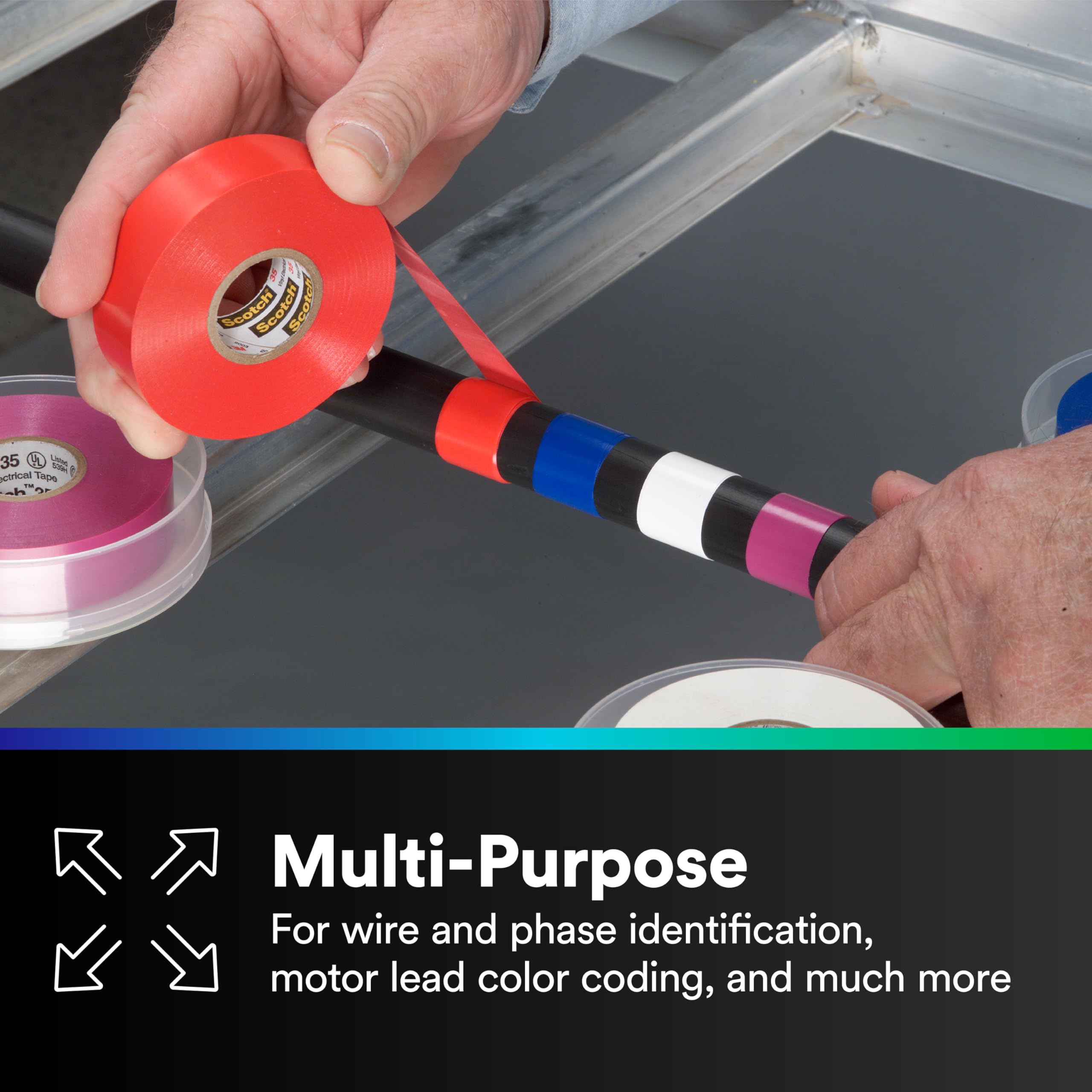

• MULTI-PURPOSE: Excels in wire and phase identification, motor lead color coding, piping system organization, cable jacket repair, and safety zone marking

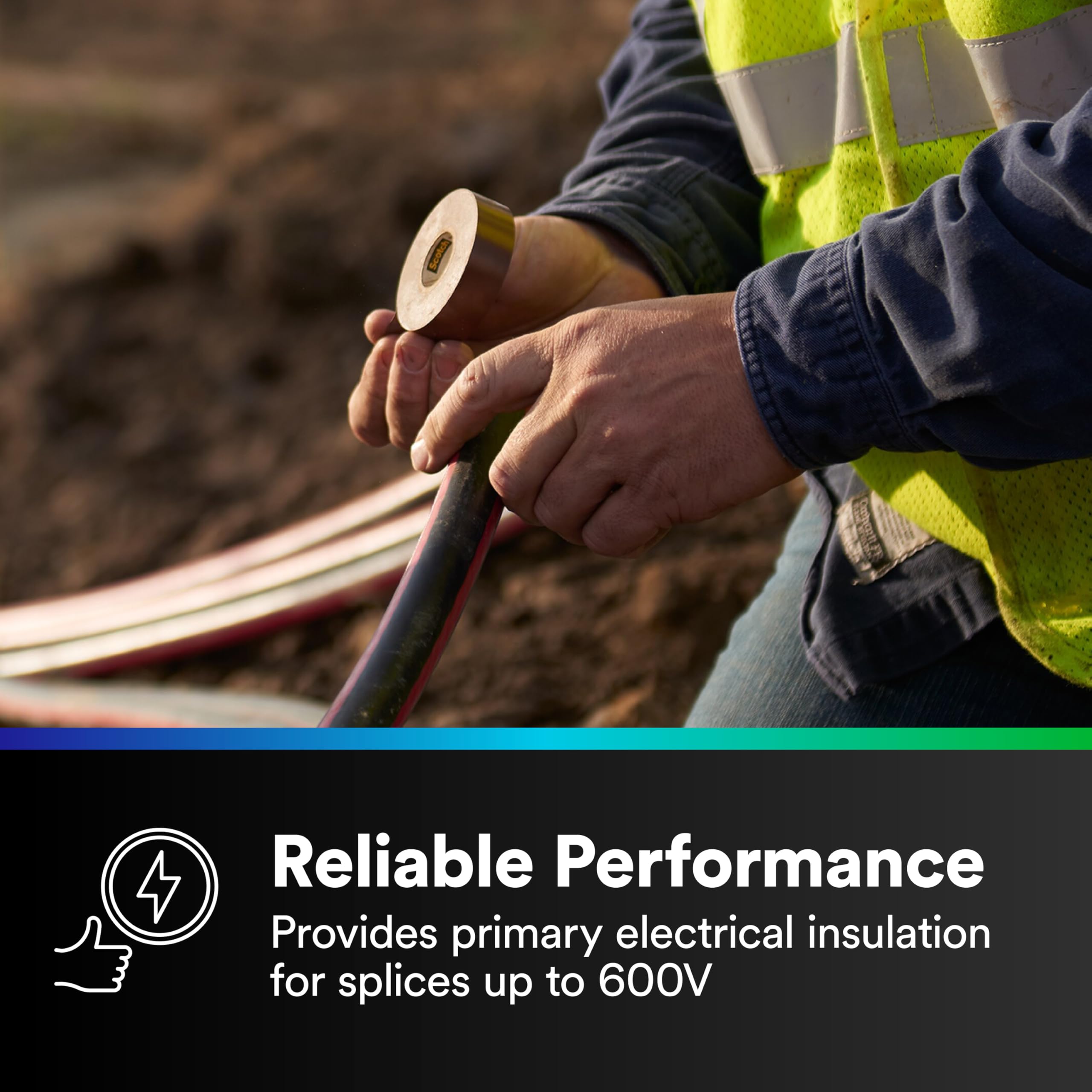

• RELIABLE PERFORMANCE: Provides primary electrical insulation for splices up to 600V in demanding indoor and weather-protected environments

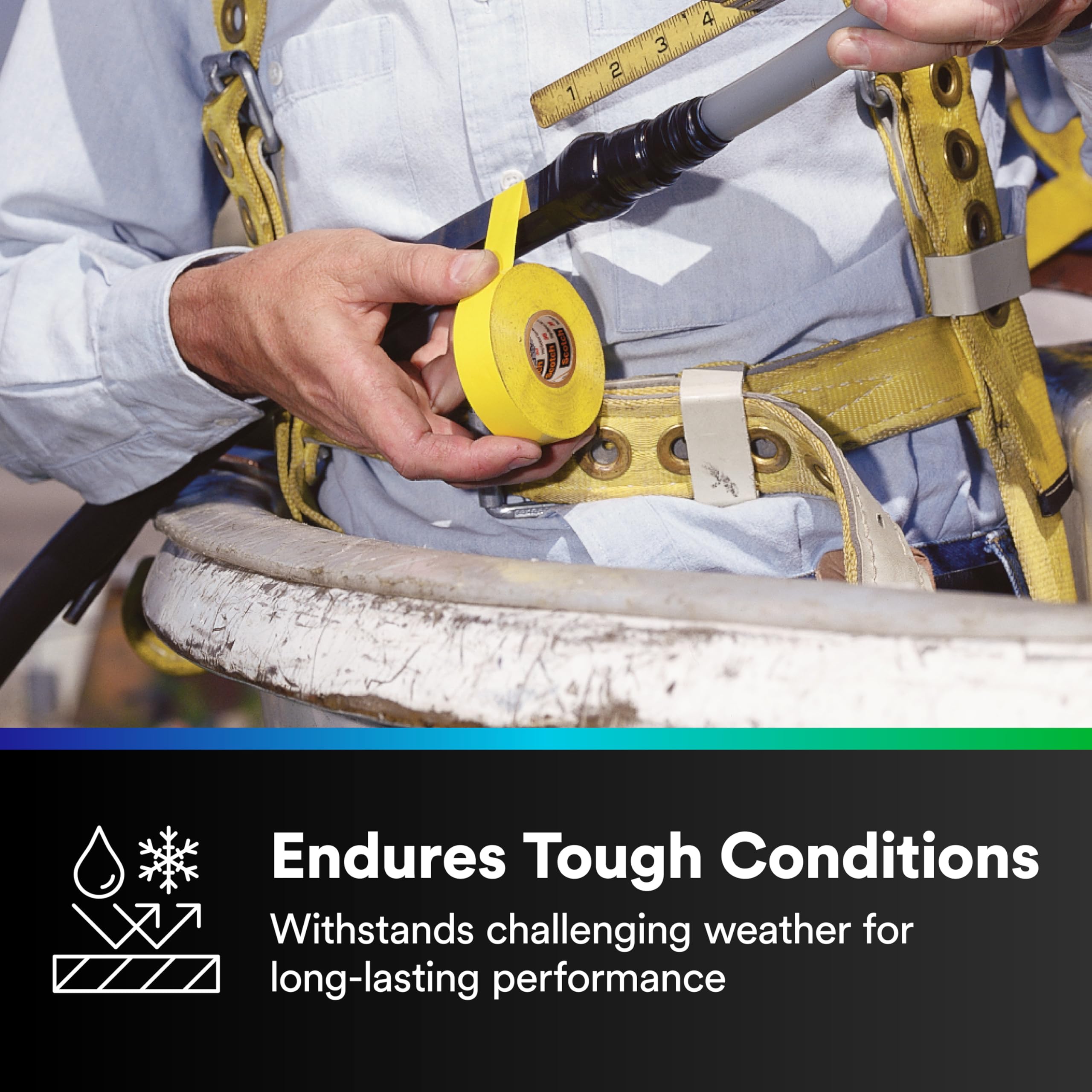

• ENDURES THE ELEMENTS: Protects in challenging environments, making it a reliable solution for long-lasting performance

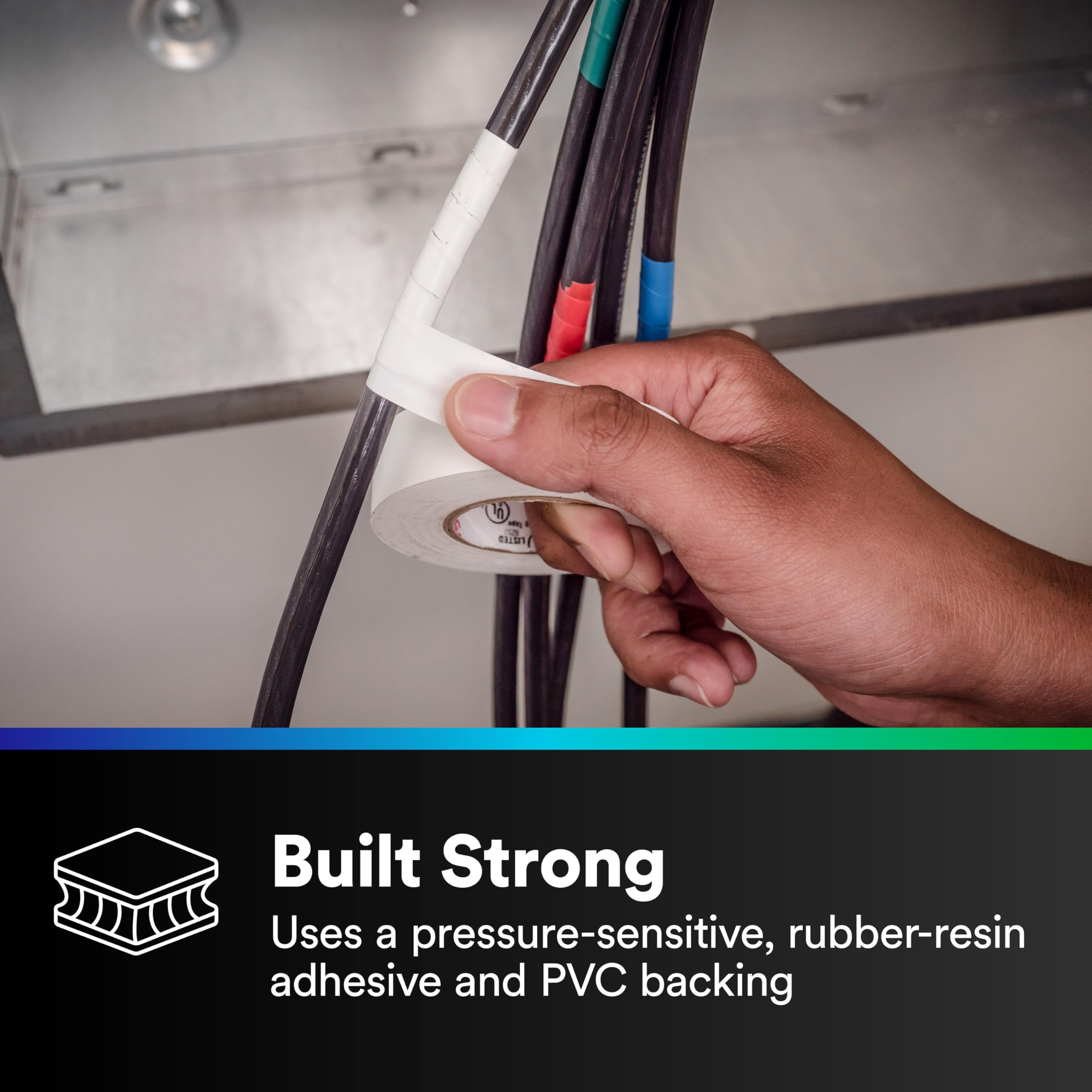

• BUILT STRONG: Engineered with a pressure-sensitive, rubber-resin adhesive and flexible PVC backing, for excellent, long-lasting electrical and mechanical protection

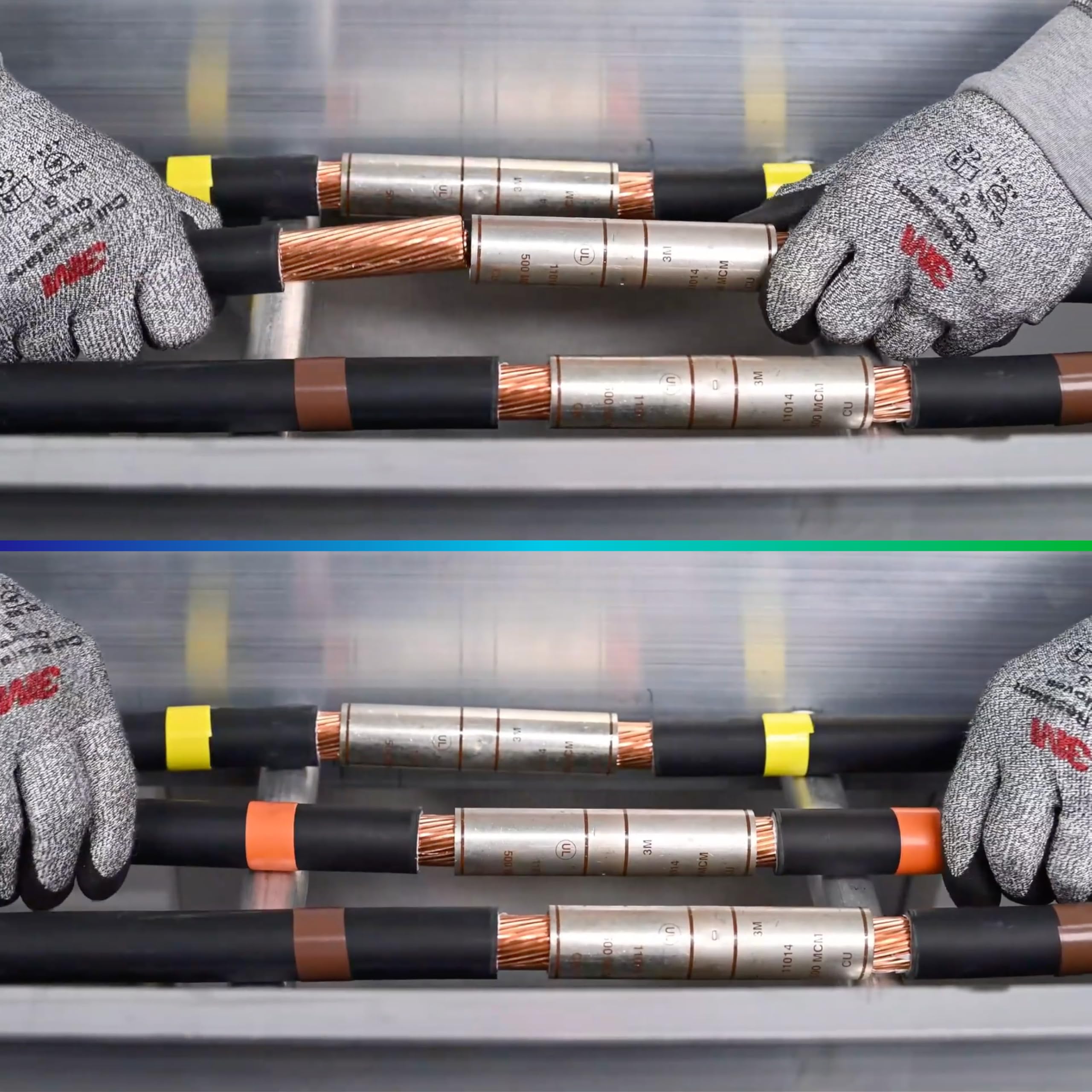

• ENHANCED DEFENSE: Provides additional protection for LV/MV/HV joints and splices when used as an overwrap with rubber splicing and mastic tapes
• TEMPERATURE-RESISTANT: Performs within temperatures from 14 °F to 221 °F (-10 °C to 105 °C)
• HIGHLY COMPATIBLE: Works with synthetic cable insulations, jackets, and splicing compounds
• SPECIFICATIONS: Meets the standard for UL 510 Listed, CSA C22.2 No.197 and VDE Mark Certificate no. 130462; Type 7: IEC 60454-3-1-7/F-PVCP/90 Certified, compliant with IEC 60454-3-1-7/F-PVCP/90, and RoHS and is flame retardant, sunlight (white only), cold resistant per (UL510) standards

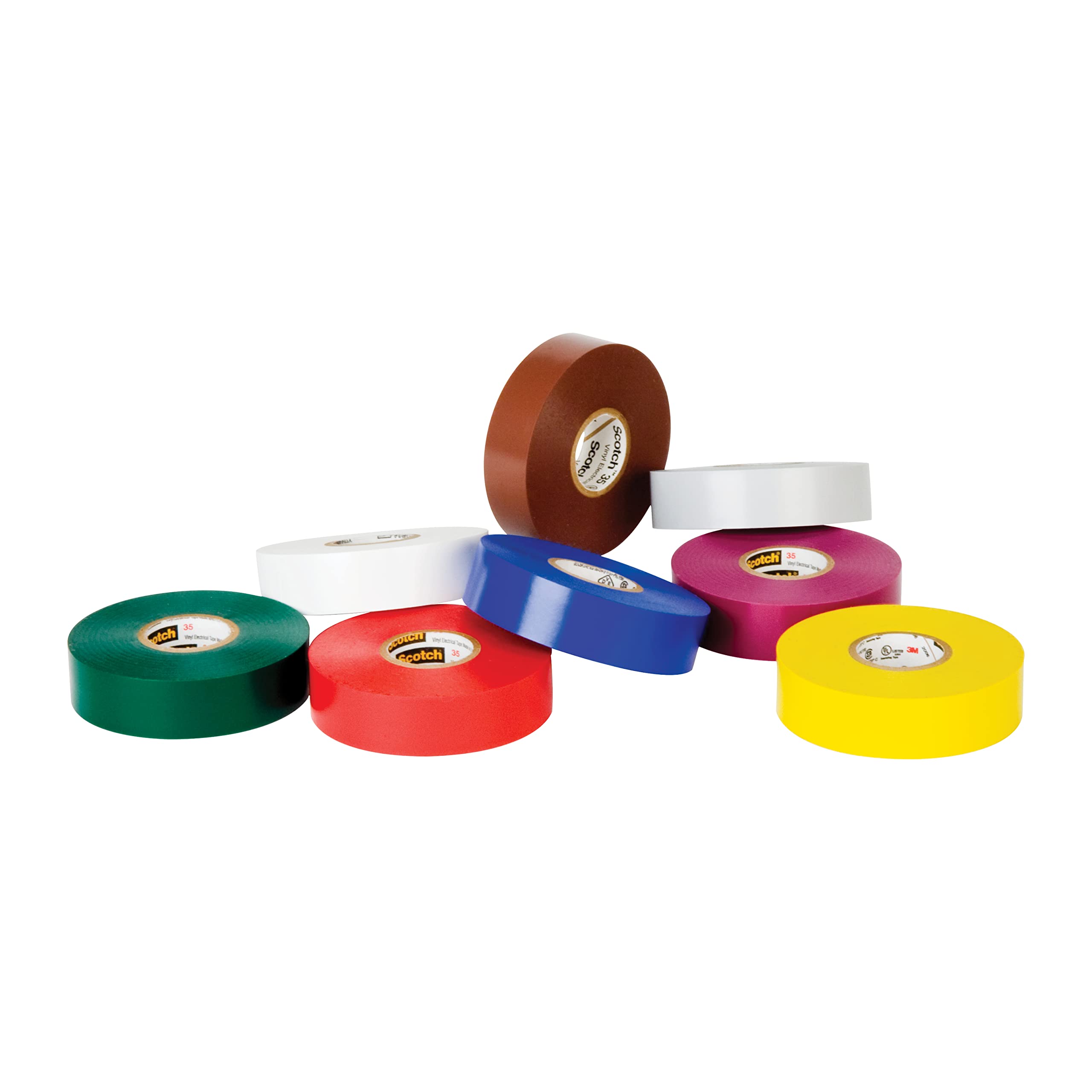

• PRODUCT OPTIONS: Available in ten fade-resistant colors, including blue, brown, gray, green, orange, pink, red, violet, white (white offers full UV-resistance), and yellow
• For industrial/occupational use only. Not for consumer sale or use

model number: 35-Multi-Color-1/2x20FT-8Pk

Part Number: 35-Multi-Color-1/2x20FT-8Pk

Details: Scotch Vinyl Color Coding Electrical Tape 35 and the other products in this family are designed to address the daily challenges customers face in the industry. Through innovation and rigorous testing, 3M is committed to delivering high-performance products that help customers enhance application efficiency and effectiveness, featuring aggressive backings and adhesives designed to withstand challenging temperatures and environments where moisture may be present. For best application practices, apply in half-lapped layers with enough tension to create a uniform wrap. For most applications, this tension will reduce the tape width to approximately 5/8 of its original size. When taping pigtail splices, wrap the tape beyond the ends of the wires and then fold it back to provide a protective cushion against cut-through. For the final wrap, apply the tape without tension to help prevent flagging. Discover how Scotch Vinyl Color Coding Electrical Tape 35 can enhance the performance of your electrical applications. Scotch Vinyl Electrical Tape 35 is a US-made, professional-grade, nominal 7-mil (0.178 mm) thick, electrical insulating PVC tape. In accordance with NFPA 70, National Electrical Code–where flame, sunlight and cold resistance is required–this adhesive is best used as primary insulation on applications up to 600V at a maximum temperature of 80 °C (176 °F) and minimum temperature of -10 °C (14 °F) on joints and splices in wires and cables. The tape's color-coded system helps identify cables on cell sites, phase coding, motor leads and piping systems to improve safety on industrial, commercial and residential jobs. UL Listed, CSA Listed, and RoHS and Prop 65 compliant, use Scotch Vinyl Electrical Tape 35 for critical indoor and outdoor operations where General Vinyl Electrical tape is not recommended.

EAN: 0054007905295

Package Dimensions: 6.1 x 3.9 x 2.0 inches
