Brand: BOJACK

Features:

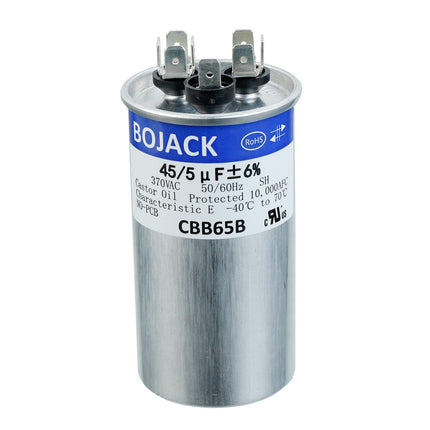

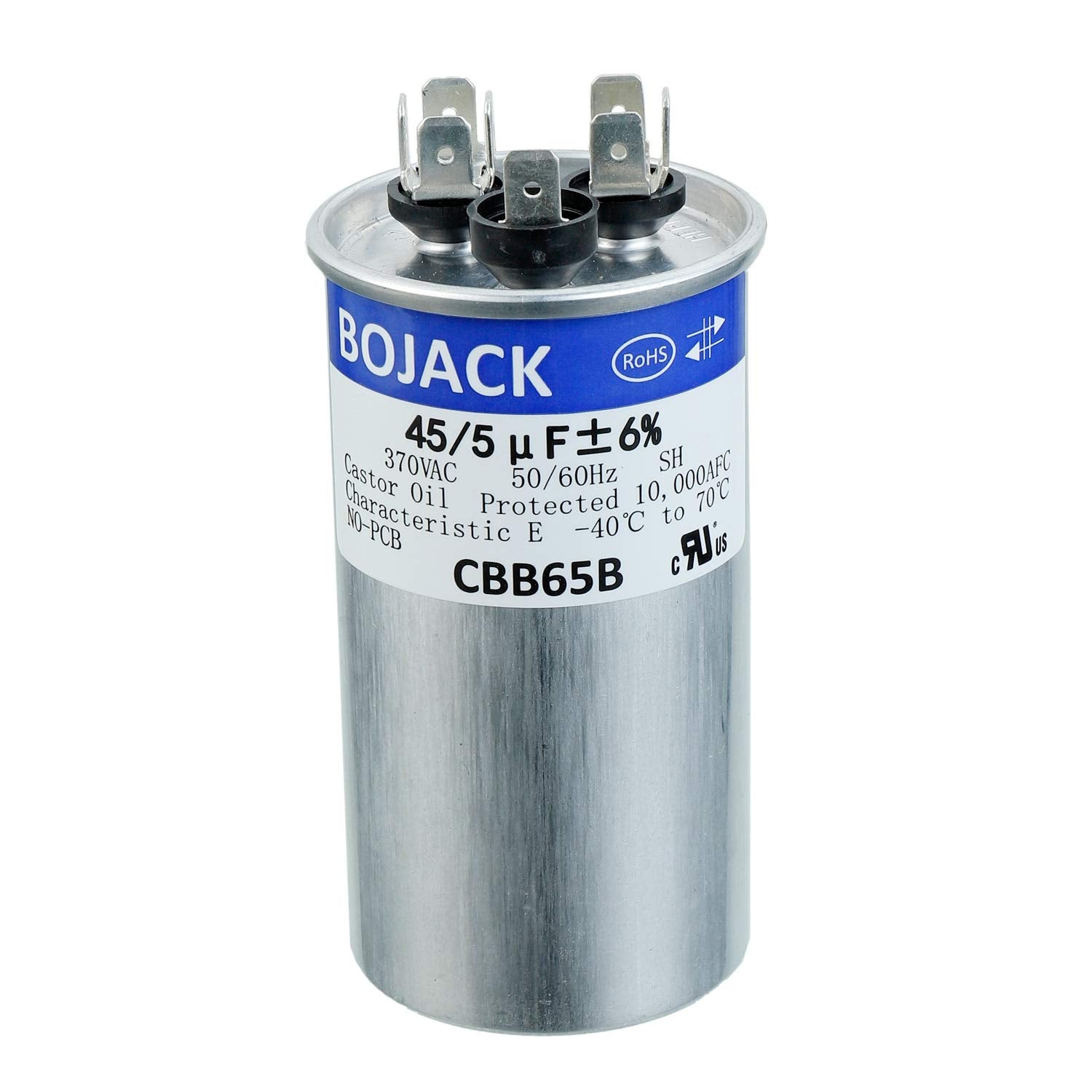

• BOJACK 45+5uF ±6% 370V CBB65 Dual run circular start capacitor

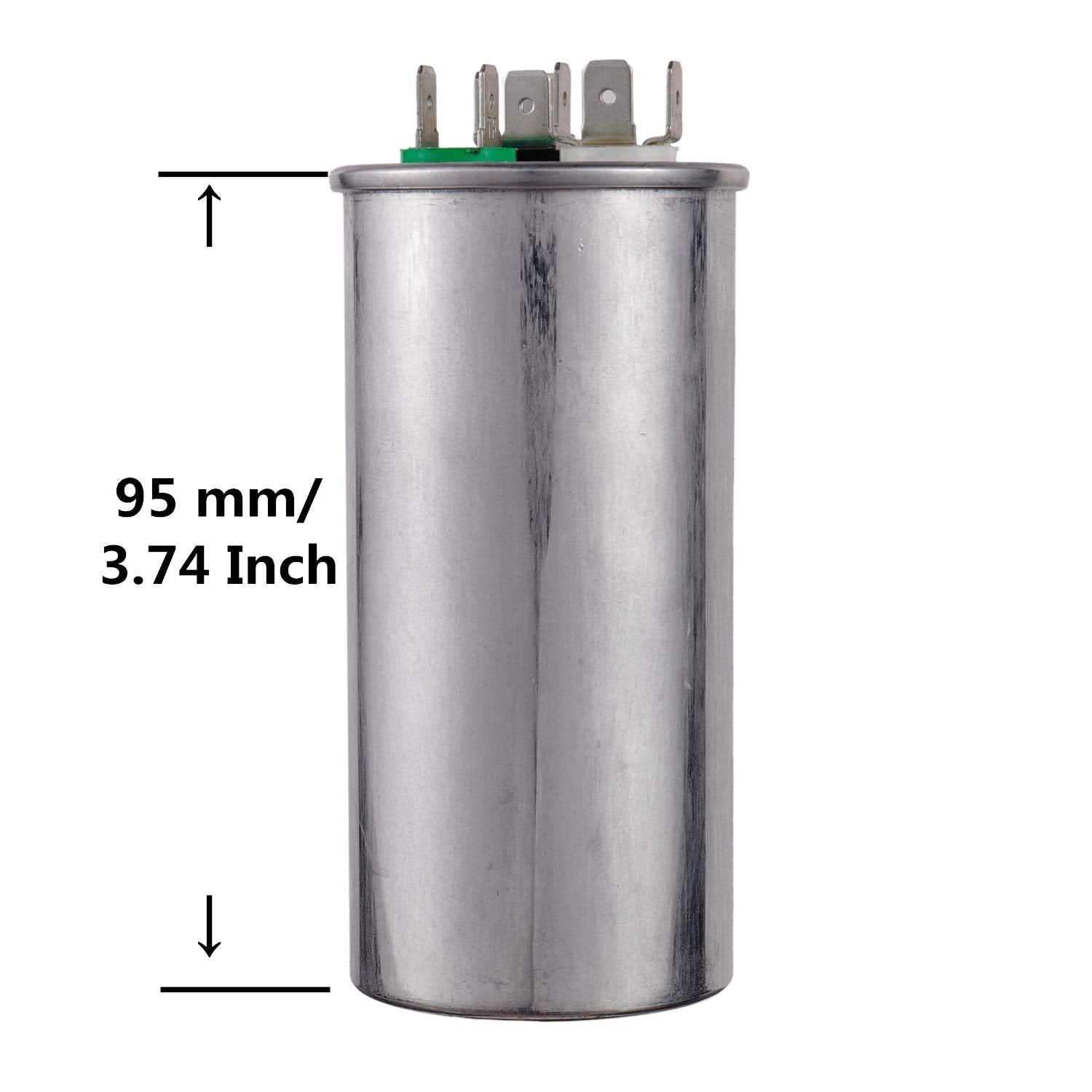

• Capacitor dimension: Diameter(50 mm/1.97 inch) Height(95 mm/3.74 inch)
• Operating temperature: -40 ℃ to +70℃，Safety rated: 10,000 AFC

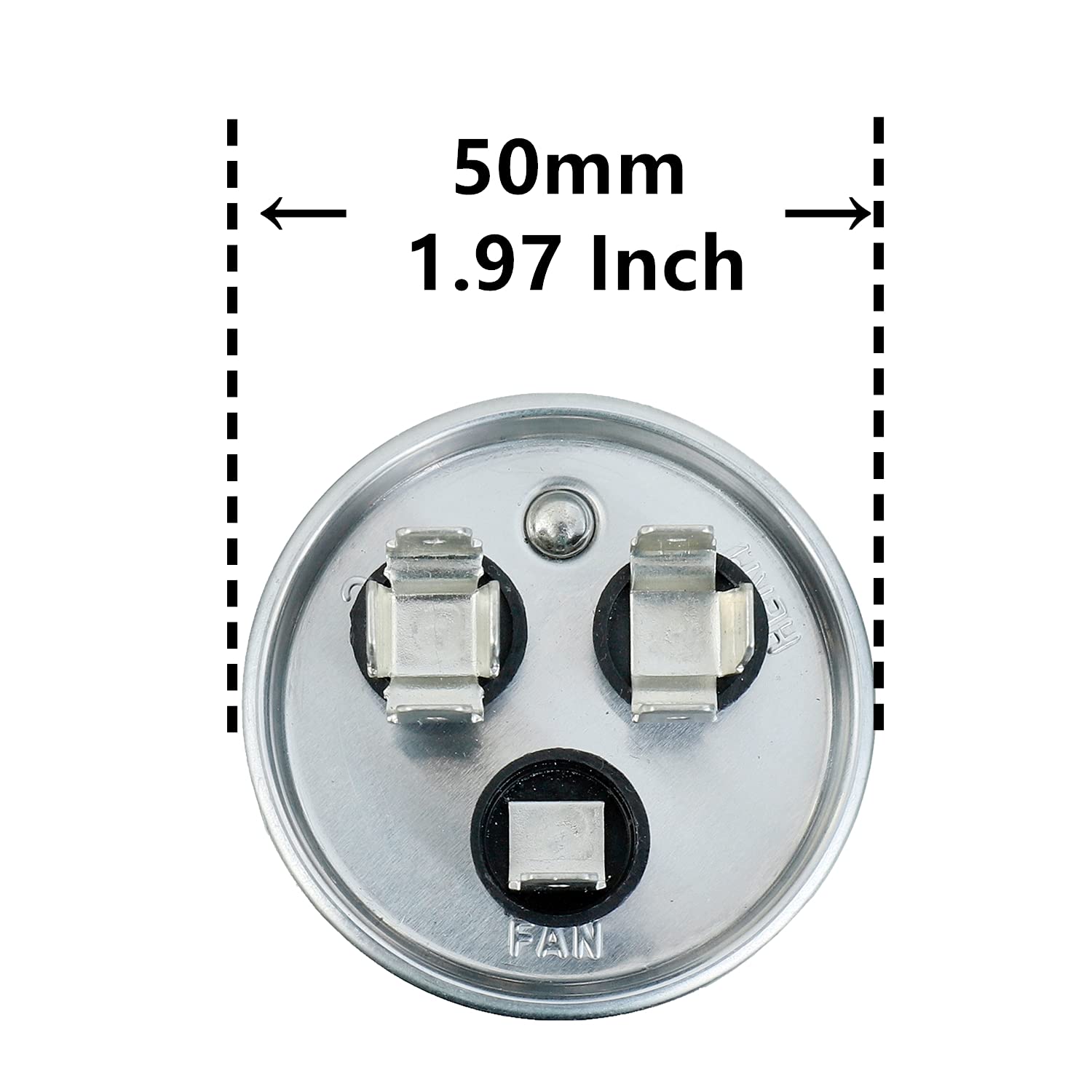

• Three terminals on the top are labeled "Herm"/"H" for the compressor motor, "Fan"/"F" for the fan, and "C" for the common line.
• Replacement for 97F9895, Z97F995, 97F9895BZ3, 27L880

model number: BJ-CAP370-455

Part Number: BJ-CAP370-455

Details: BOJACK Dual run circular start capacitor

Ombines two capacitors into one unit. Three terminals on the top are labeled "Herm"/"H" for the compressor motor,
"Fan"/"F" for the fan, and "C" for the common line.It will power a compressor motor and a fan motor
Model: CBB65（Universal model）
Shell material: metal
Dielectric Material: metallized polypropylene film
Capacity: 45+5uf
Tolerance: ±6%
Rated voltage: 370V AC
Frequency: 50 / 60Hz
Safety rated: 10,000 AFC
Capacitor dimension: Diameter(50 mm/1.97 inch) Height(95 mm/3.74 inch)
Operating temperature: -40 ℃ to +70℃
This capacitor is used for start-up and operation of AC motors with
frequency of 50Hz/60Hz such as Industrial Grade Replacement for
Central Air-Conditioners, Heat Pumps, Condenser Fan Motors, and Compressors.
It is small in size, lightweight, heat resisting and anti-explosion.

EAN: 0759838090249

Package Dimensions: 4.6 x 2.6 x 2.3 inches
