Brand: EXCELFU

Color: Blue

Features:

• Compatibility: Replace part number 6560-860, EXCELFU spas hot tub flow switch compatible with all Sundance 1999+ 2 pump or 3 pump systems and 2001+ 1 Pump Capri Systems.
• Suitable Models: For Sundance 800/850/880 Series: Maxxus, Optima, Cameo, Majesta, Altamar, Marin. 1999+ Sweetwater and Portifino series with circulation pump Jacuzzi J-300 LCD series models, 2002+ (with box end connectors). If you have a 2002+ LED J-300 use the 2560-040 (curled finger connector).

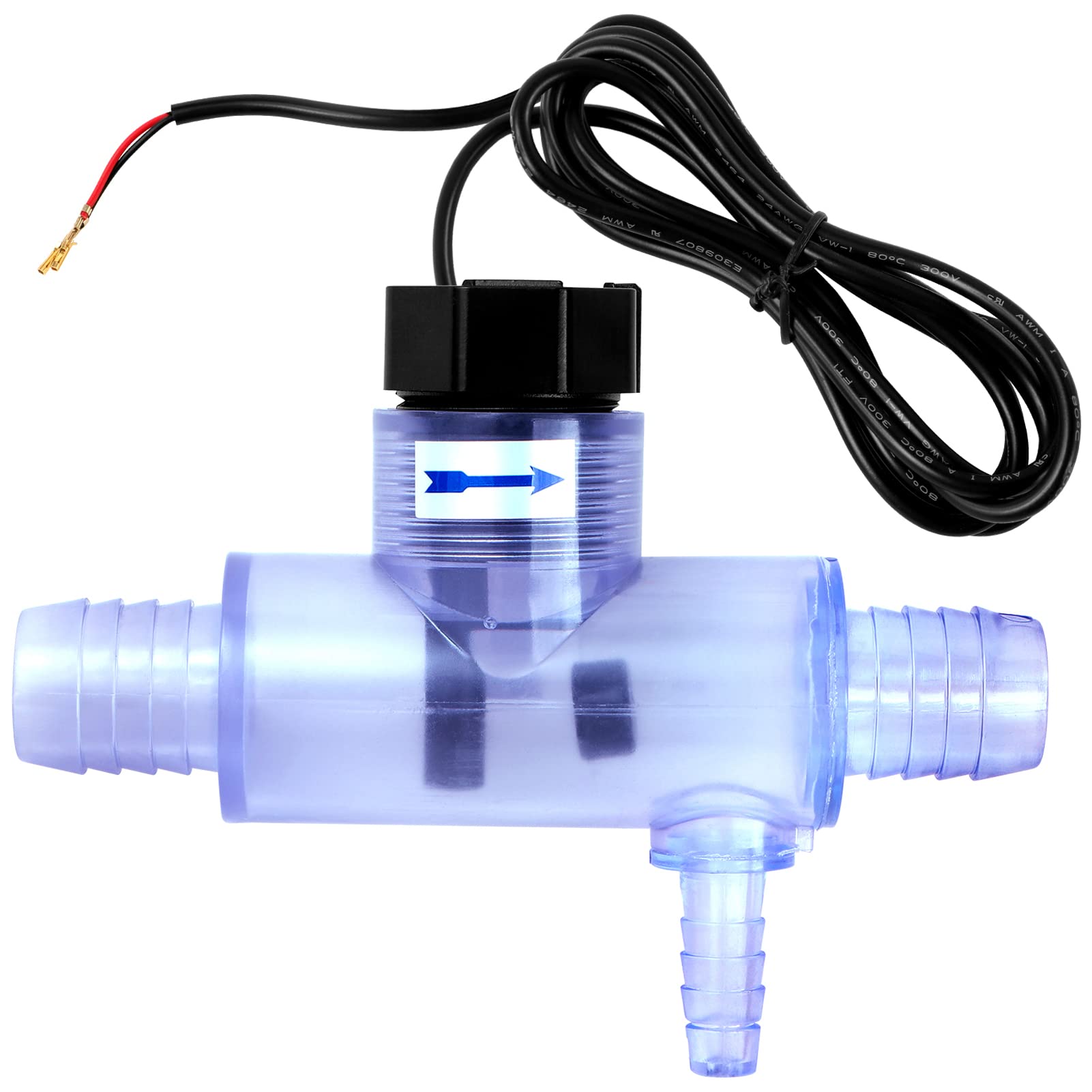

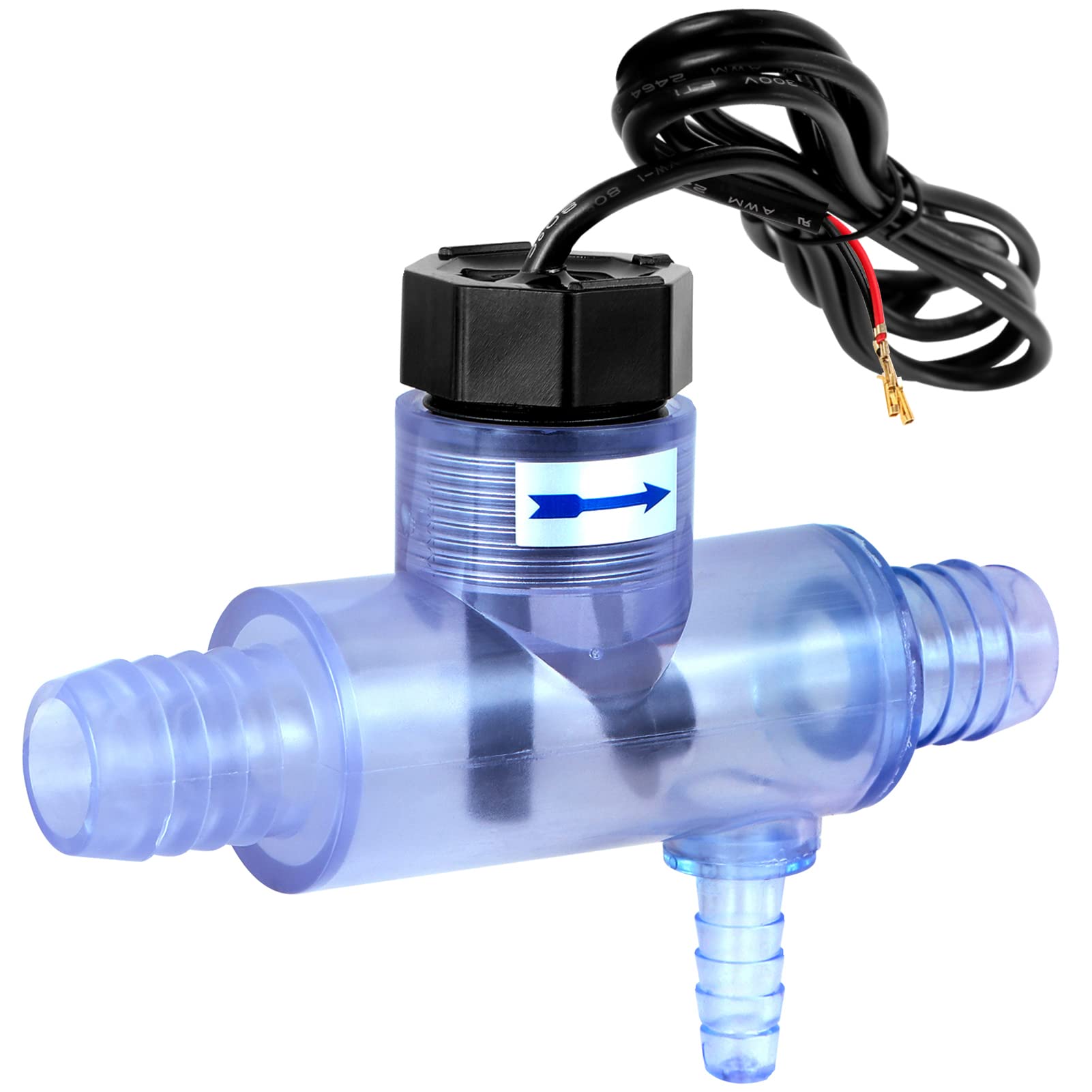

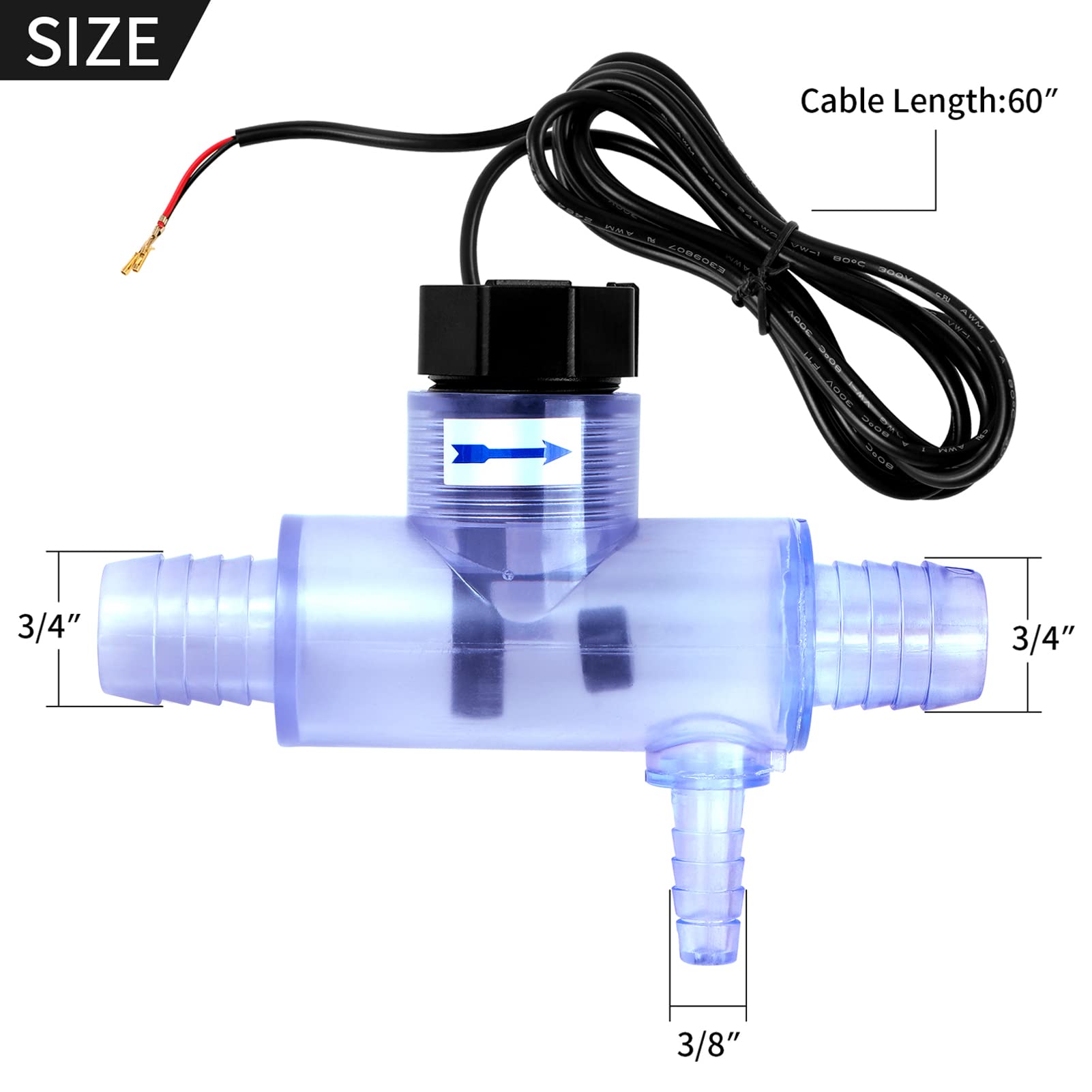

• Flow Switch Tee: Flow switch with transparent housing tee, 3/4 inch barb and 3/8 inch barb off the side.
• Spa Flow Senser: A defective flow switch will cause a "Flashing Flo" or "Solid Flo" on the Control Panel Icon. It is time to replace the flow switch if you get "Solid Flo" error. "Flashing Flo" may caused by defective flow switch, clogged or defective circulation pump, or dirty spa filter.
• Easy to Install: Just unscrew the old flow switch and screw in the new one while paying attention to the flow direction of the switch when installed.

model number: 6560-860

Part Number: 6560-860

Details: EXCELFU Flow Switch for Sundance Spas and Jacuzzi Hot Tub, Repalce Part# 6560-860

Used for Following Spa/Hot Tub Models:
• All 1999+ 2 pump or 3 pump systems and 2001+ 1 Pump Capri Systems.
• Sundance 800/850/880 Series: Maxxus, Optima, Cameo, Majesta, Altamar, Marin.
• 1999+ Sweetwater and Portifino series with circulation pump Jacuzzi J-300 LCD series models, 2002+ (with box end connectors)
• If you have a 2002+ LED J-300 please use the 2560-040 (curled finger connector).
• Replace part number: 6560-860

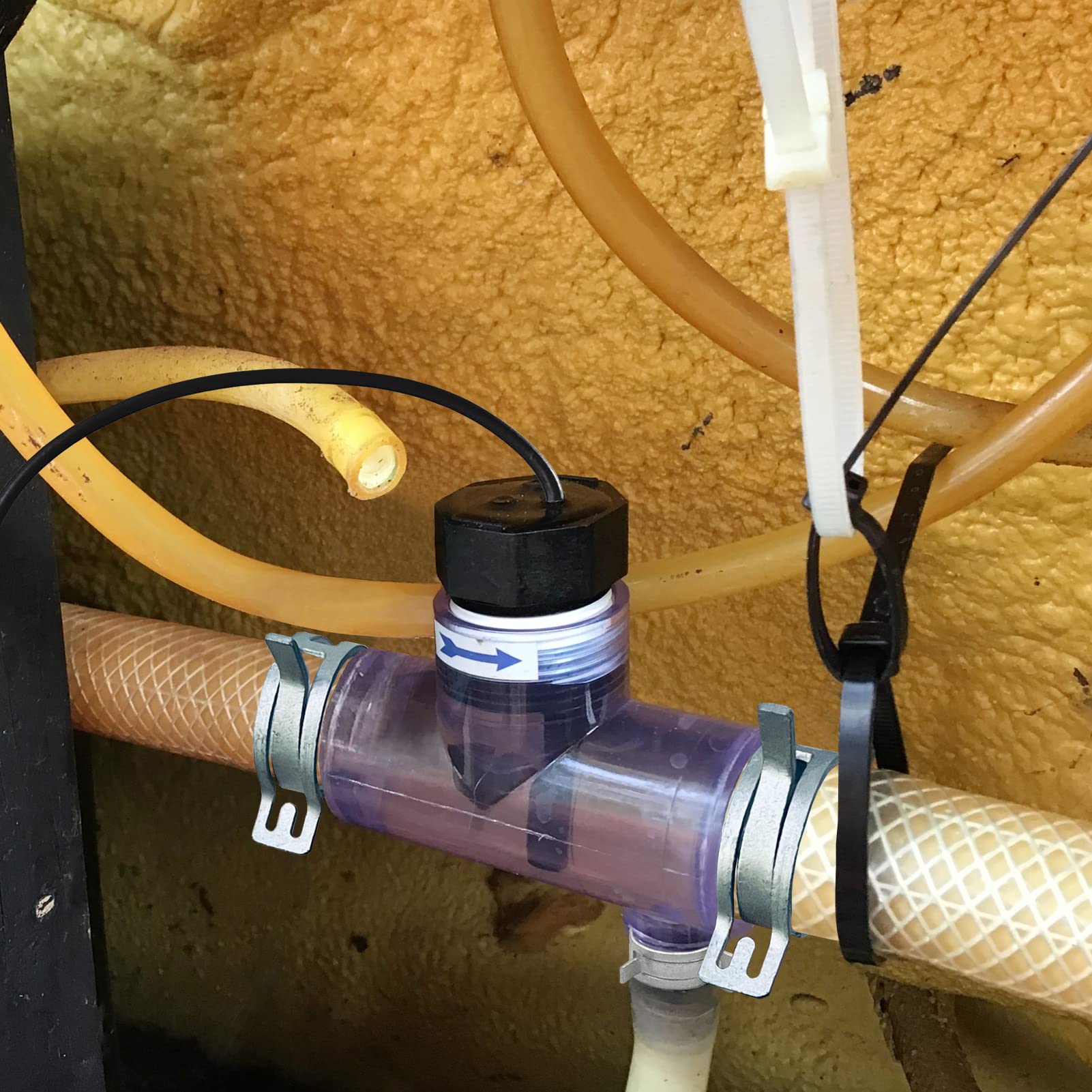

Easy to Install
Just unscrew the old flow switch and screw in the new one and saved a service call and a cost in the process.

Troubleshooting
A defective flow switch will cause a "flashing Flo" or "solid Flo" on the control panel icon. "solid Flo" is the flow switch. "flashing Flo" could be the flow switch, circulation pump (clogged or defective) or dirty filter.

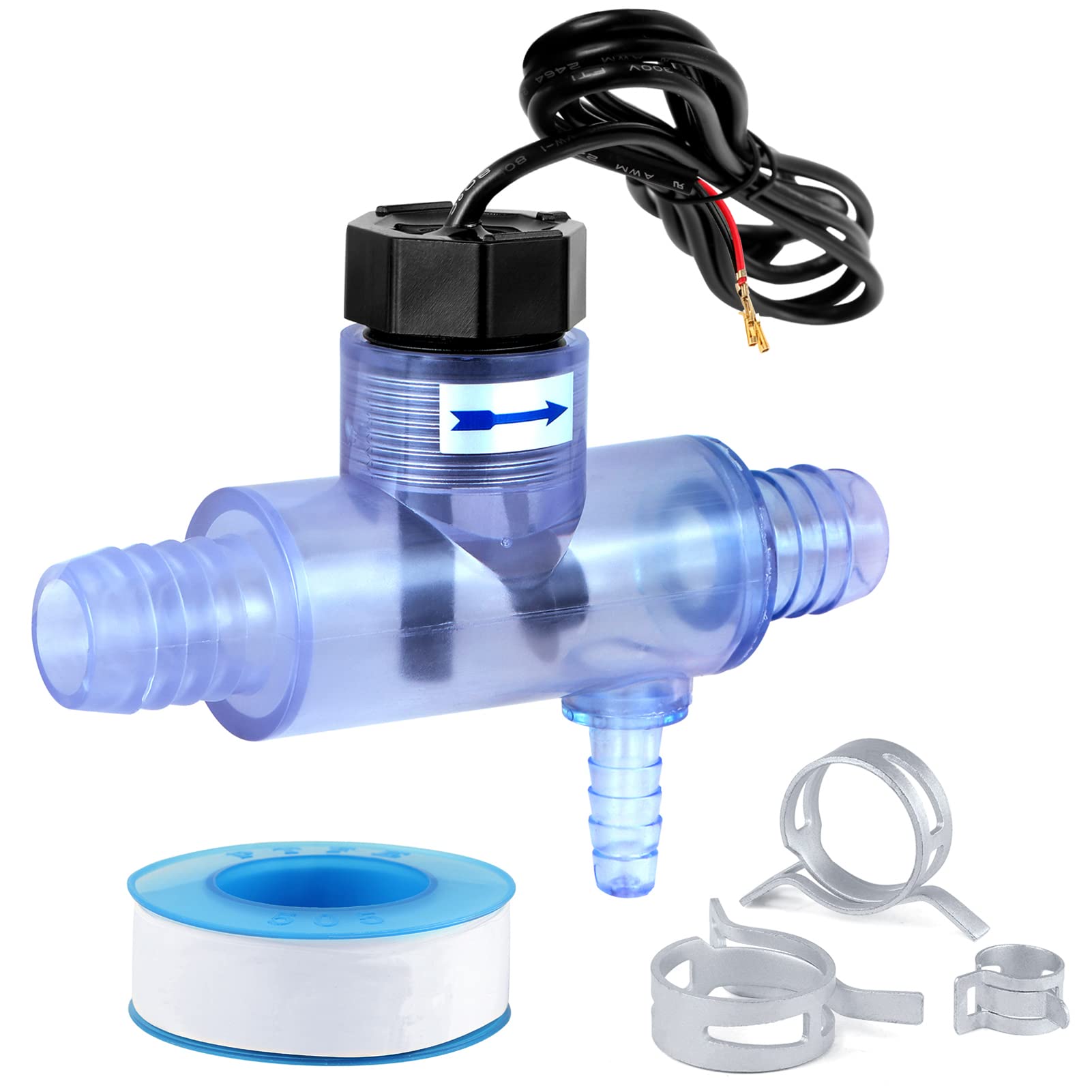

Package Include
1 x Flow Switch with Cable
1 x Tee Housing
1 x Sealant Tape
3 x Hose Clamps

Package Dimensions: 6.0 x 4.8 x 2.0 inches
