Brand: Lichamp

Color: Black

Features:

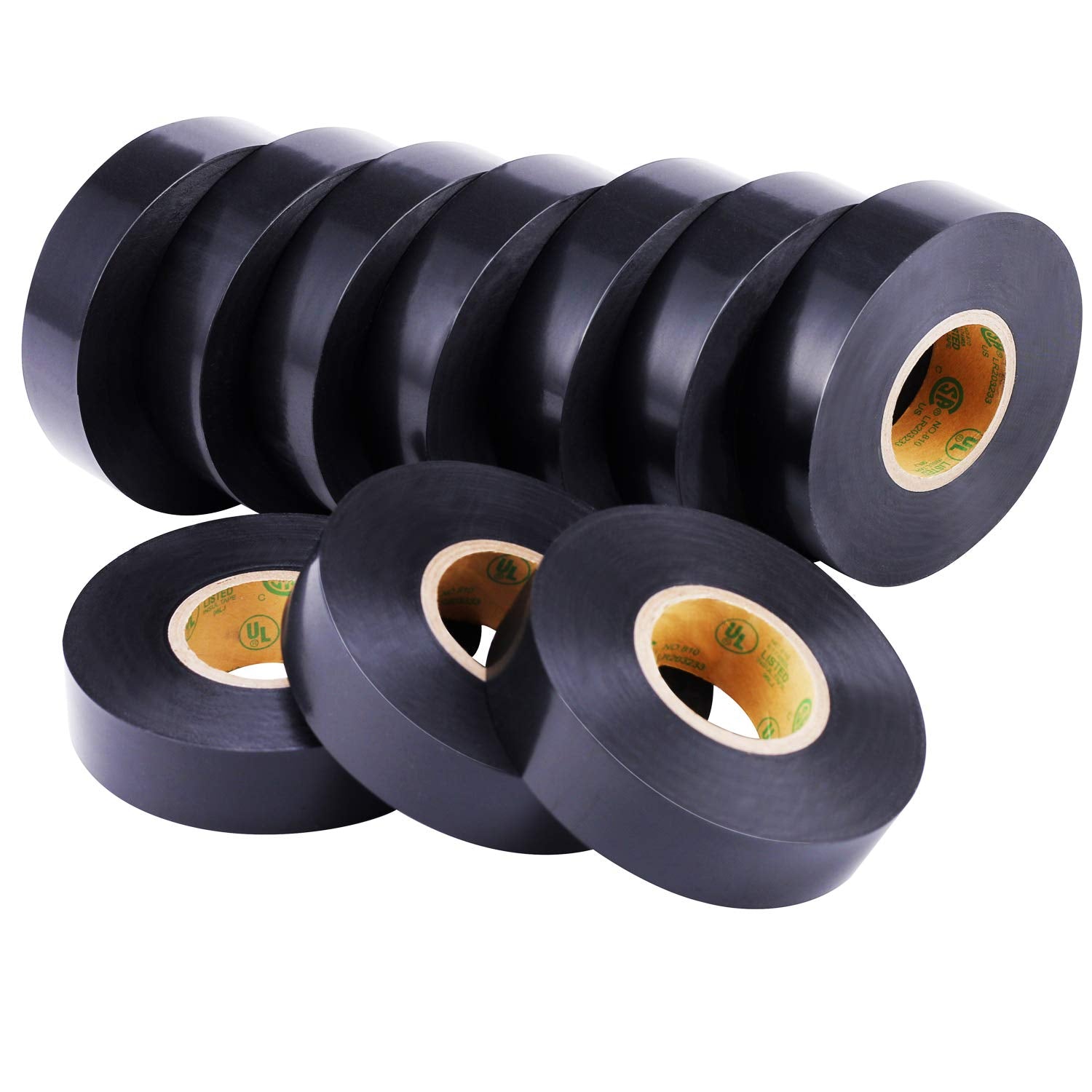

• 10 rolls value pack, 7 mil thickness black vinyl electrical tape 3/4 in. x 66 ft. x 10 rolls
• UL and CSA listed, industrial grade & premium quality, superior adhesion while insulating and protecting
• 10 individually wrapped rolls store easily
• Ideal for contractors professional and industrial applications as well as DIYers hobbyists and home use, flame retardant and lead free, resistant to sun water oil acids alkalies and corrosive chemicals
• The Lichamp Vinyl Electrical tape designed for all-weather durability with an abrasion-resistant backing for long-lasting performance, offering protective insulation to safeguard wires from corrosion

Details: Lichamp 10-Piece UL Black Vinyl Electrical Tape Bulk, 3/4 Inch by 66 Feet (660 Total Yards), UL and CSA Listed, Adhesive for General Home Vehicle Auto Car Power Circuit Wiring

Applications:
Primary electrical insulation for all wire and cable splices rated up to 600 volts and 105°C (220°F).
Primary electrical insulation for 600 volt bus applications, and protective jacketing for low and high voltage bus.
Protective jacketing for high voltage cable splices and repairs.
Harnessing of wires and cables.

Typical Data / Physical Properties:
Material: Poly vinyl chloride (PVC)
Color: Black
Thickness: 7 mil
Width: 3/4 inch
Length: 66 feet x 10 rolls
Inner core size: 1.5 in.
UL and CSA Listed
Elongation: 240% min
Temperature Rating: 80°C (176°F)
Handling: –18°C (0°F)
Continuous Operation: 105°C (220°F)
Adhesion to Steel: 22°C (72°F): 28 oz./in.; –18°C (0°F): 60 oz./in.
Adhesion to Backing: 22°C (72°F): 25 oz./in. ; –18°C (0°F): 60 oz./in.
Breaking Strength: 22°C (72°F) 15lbs./in.
Ultimate Elongation: 22°C (72°F): 250%; –18°C (0°F): 100%

Electrical Properties:
Voltage Rating: 600V
Dielectric Strength: Standard Condition 8000V
High Humidity: 90% of std.

EAN: 0741025730823

Package Dimensions: 9.1 x 6.4 x 4.0 inches
