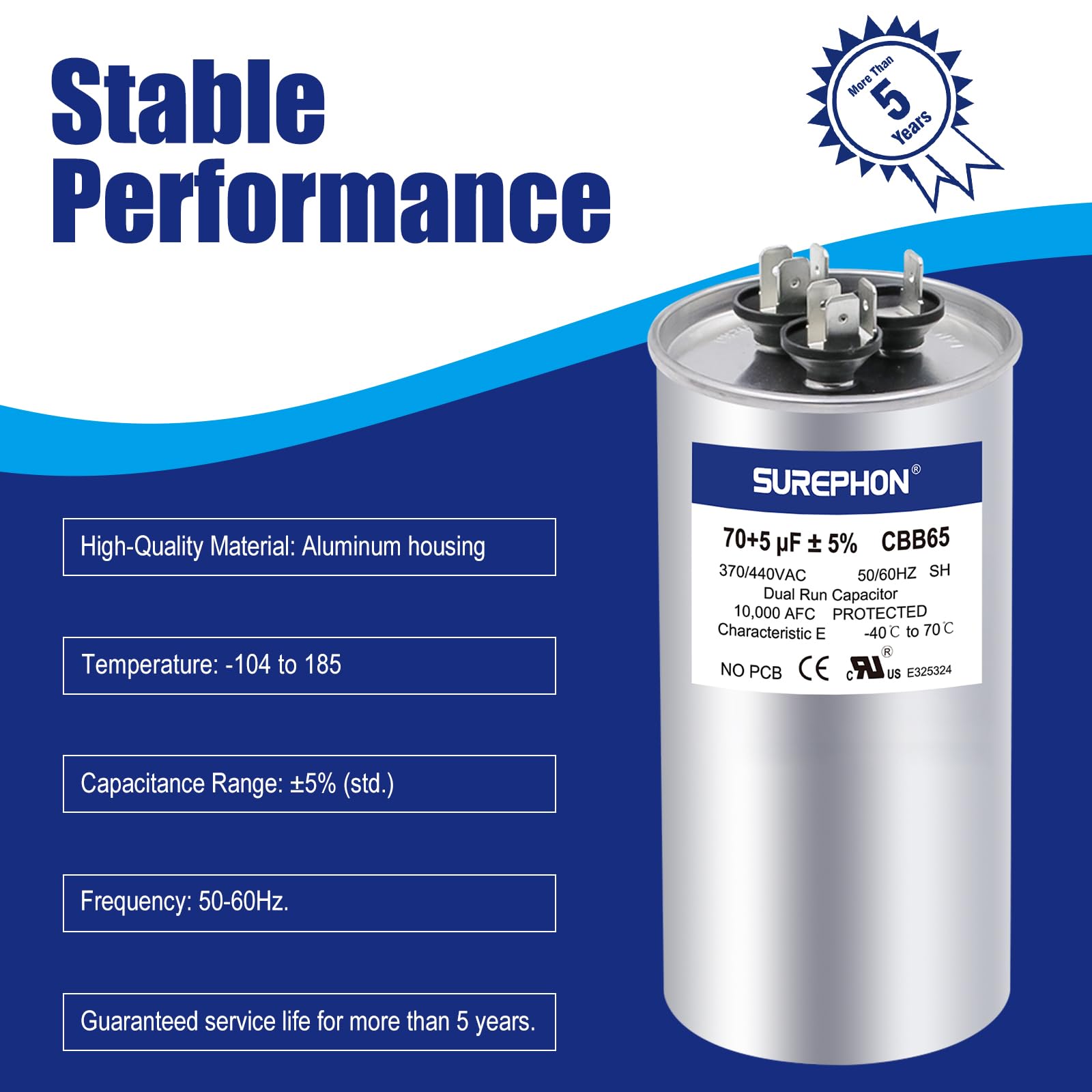

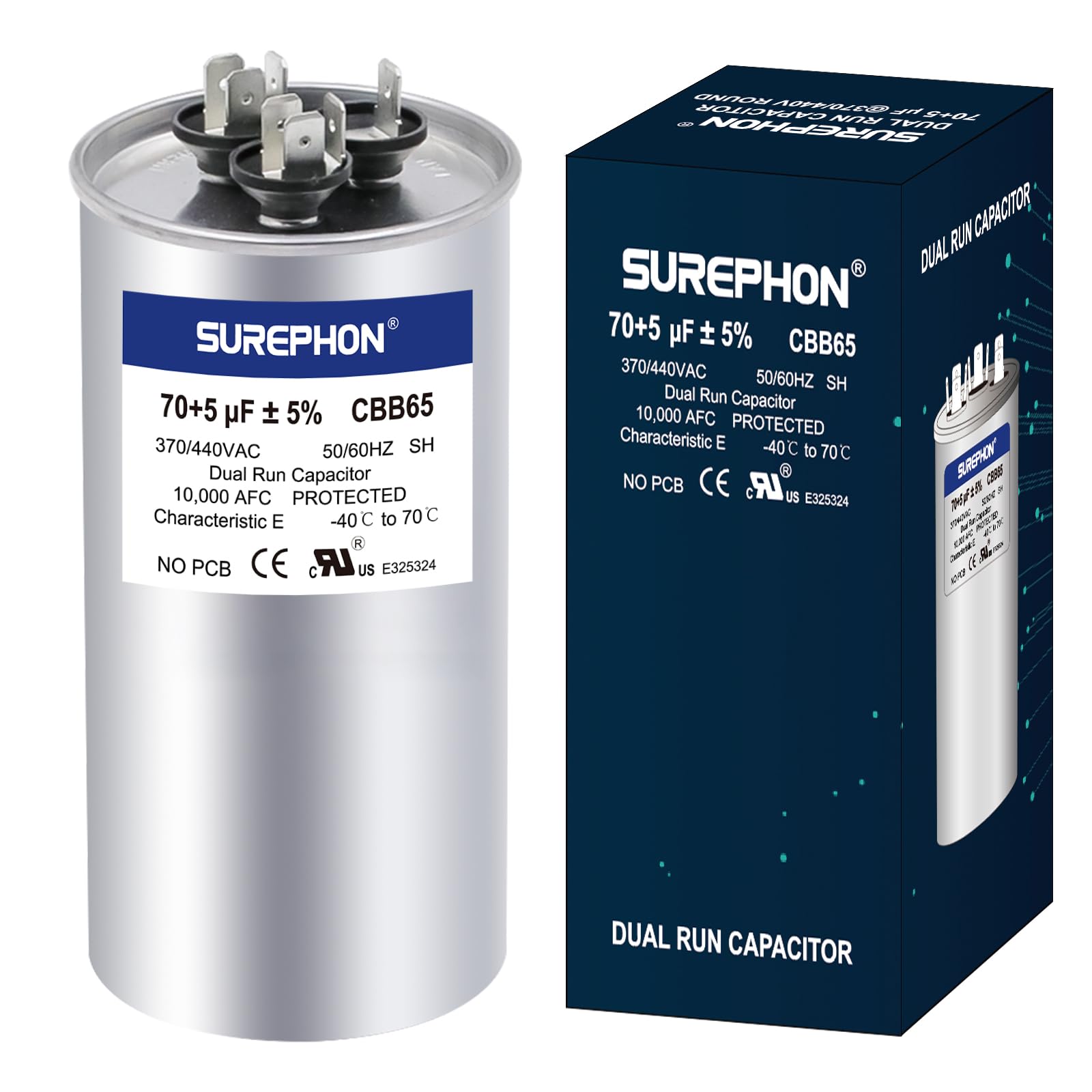

SUREPHON 70+5 uF 70/5 MFD ±5% 370V/440VAC Dual Run Start Capacitor CBB65 Works for AC Unit Fan Motor Start or Heat Pump or Condenser Straight Cool
- SUREPHON
SUREPHON 70+5 uF 70/5 MFD ±5% 370V/440VAC Dual Run Start Capacitor CBB65 Works for AC Unit Fan Motor Start or Heat Pump or Condenser Straight Cool
- SUREPHON
$42.49
Secure Checkout With
Description
Brand: SUREPHON
Features:
- SUREPHON CBB65 70+5uf ±5% ac capacitor replacement for 370/440 Volt capacitors, A Class, 10000 AFC.

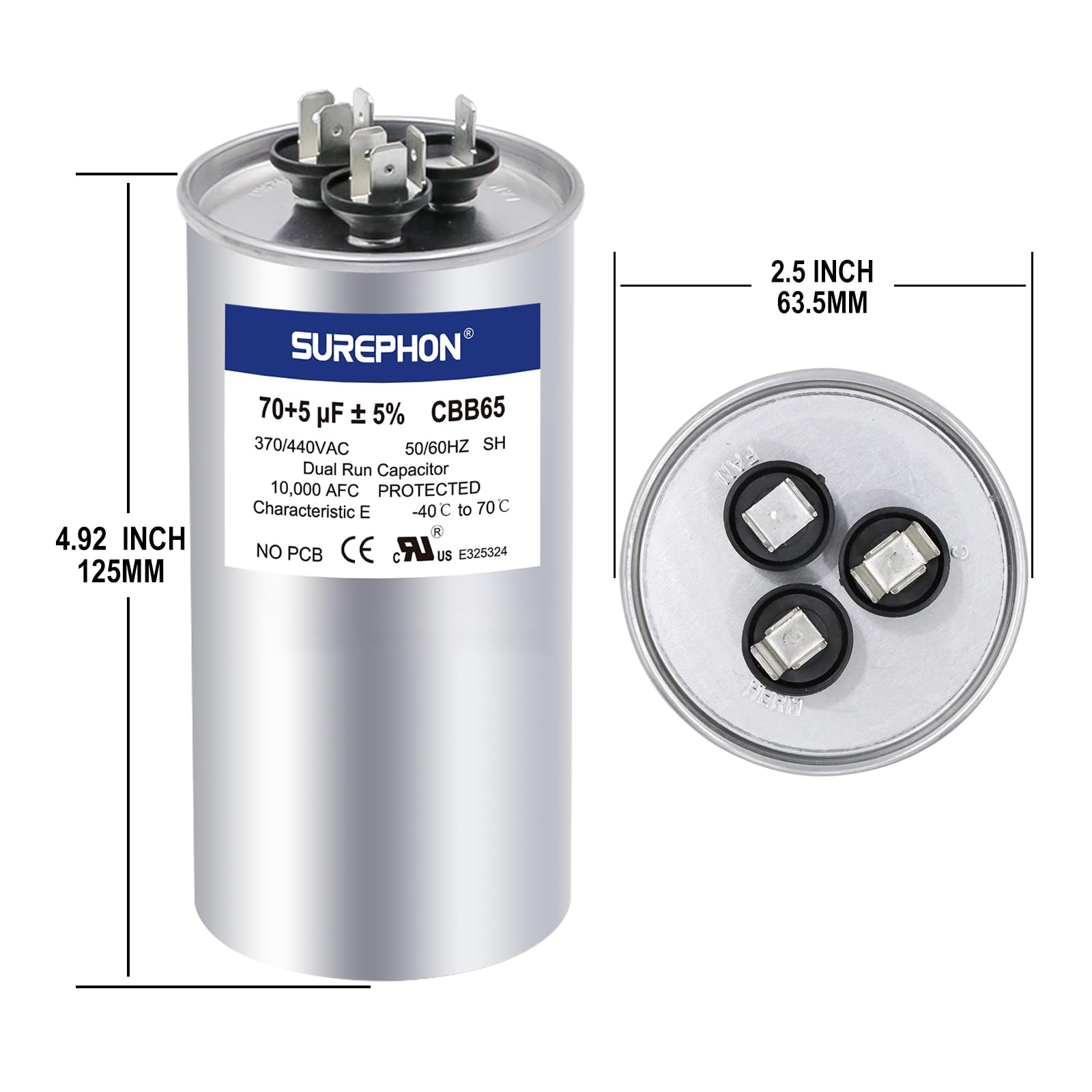

- CBB65A capacitor Diameter (63.5 mm/2.5 inches) Height (125 mm/4.92 inches)
- Capacitance Range: ±5% (std.). Frequency: 50-60Hz.,operating temperature range -40 to +70 ℃/ -40F to 158F

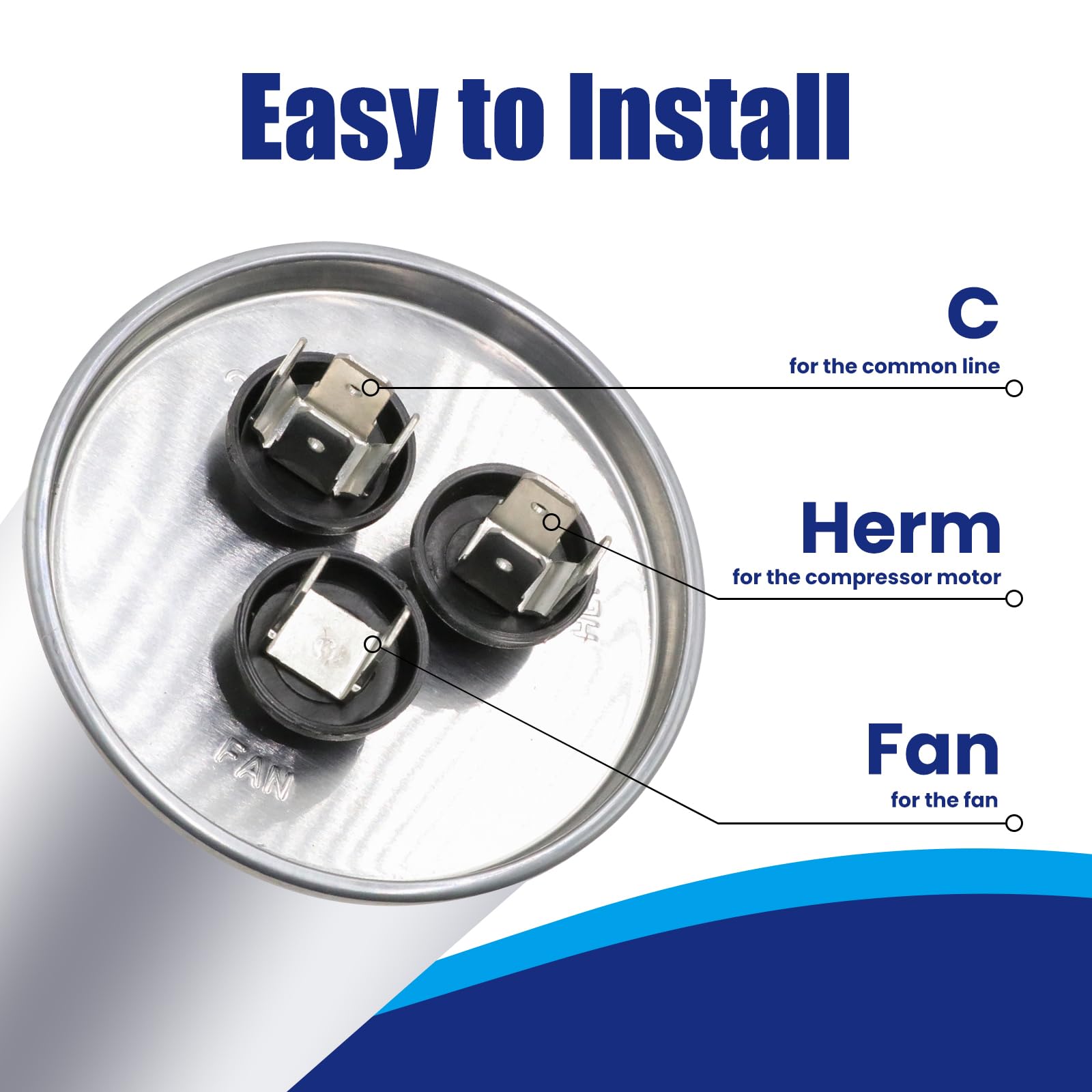

- No wiring or adapter changes are required. Three terminals on the top are labeled "Herm"/"H" for the compressor motor, "Fan"/"F" for the fan, and "C" for the common line.
- Built to the TOUGHEST U.S. standards for AC motor run capacitors.With UL certificate:E325324 (Certificate No.)
model number: 70+5 MFD
Part Number: 70+5 MFD
Package Dimensions: 6.0 x 2.9 x 2.9 inches
