Brand: XMK

Color: Blue

Features:

• Compatibility: Replace part number 2560-040, Q12DS-C2. The flow switch compatible with Sweetwater, Jacuzzi, Sundance spas hot tub. Please check the compatible model in the Product Description.
• For Sundance Spas Models: 09/2020+ 680 Series / 03/2020+ 780 Series, 04/2017+ 780 Dover / 10/2016+ 980 Series: Kingston, Claremont / 2016+ 880 Series: Maxxus, Aspen, Optima, Cameo, Altamar, Marin, Capri / 2013-03/2017 780 Montclair / 2011+ Select Series: Constance, Victoria / 2008-03/2017 780 Series: Camden, Certa, Chelsee, Hamilton, Hamilton (circ pump) / Hartford (circ pump), Burlington (circ pump) / 2007-2012 680 Hartford, Hawthorne Models equipped with a Circ Pump / 2007 Hamilton, Chelsee...
• For Sweetwater and Jacuzzi Hot Tub Models: All 2003-2004 Sweetwater Models, such as Palermo Bahia, Cayman / 2015+ J-500 Series / 09/2015+ J-400 Series / 2016+ J-300 Convertible Models / 02/2020+ J-300 Models / 10/2020+ J-200/J-100 Models / 2002-2003 J-320, J-330, and J-340 Models / 2004+ J-335,J-345 / 2007+ J-355,J-365, J-375 Models / 2007+ J-230, J-270, and J-280 Models with the Circulation Pump Option / 2002-2015 J-300 LED Series (With Curled Finger Connectors) / 2011+ JLX, JLXL models
• Function: Spa flow switch helps clear error messages FL1 and FL2, you can soaking in the hot tub again!
• Flow Switch Tee: Flow switch with clear housing tee allows for easy viewing of debris in flow switch and if it working properly. 3/4 inch barb and 3/8 inch barb off the side.
• Notice: Flow switch cable with curled finger connectors, do not use on models such as 800,850, 800 series that use a square finger connection.

model number: 2560-040

Part Number: 2560-040

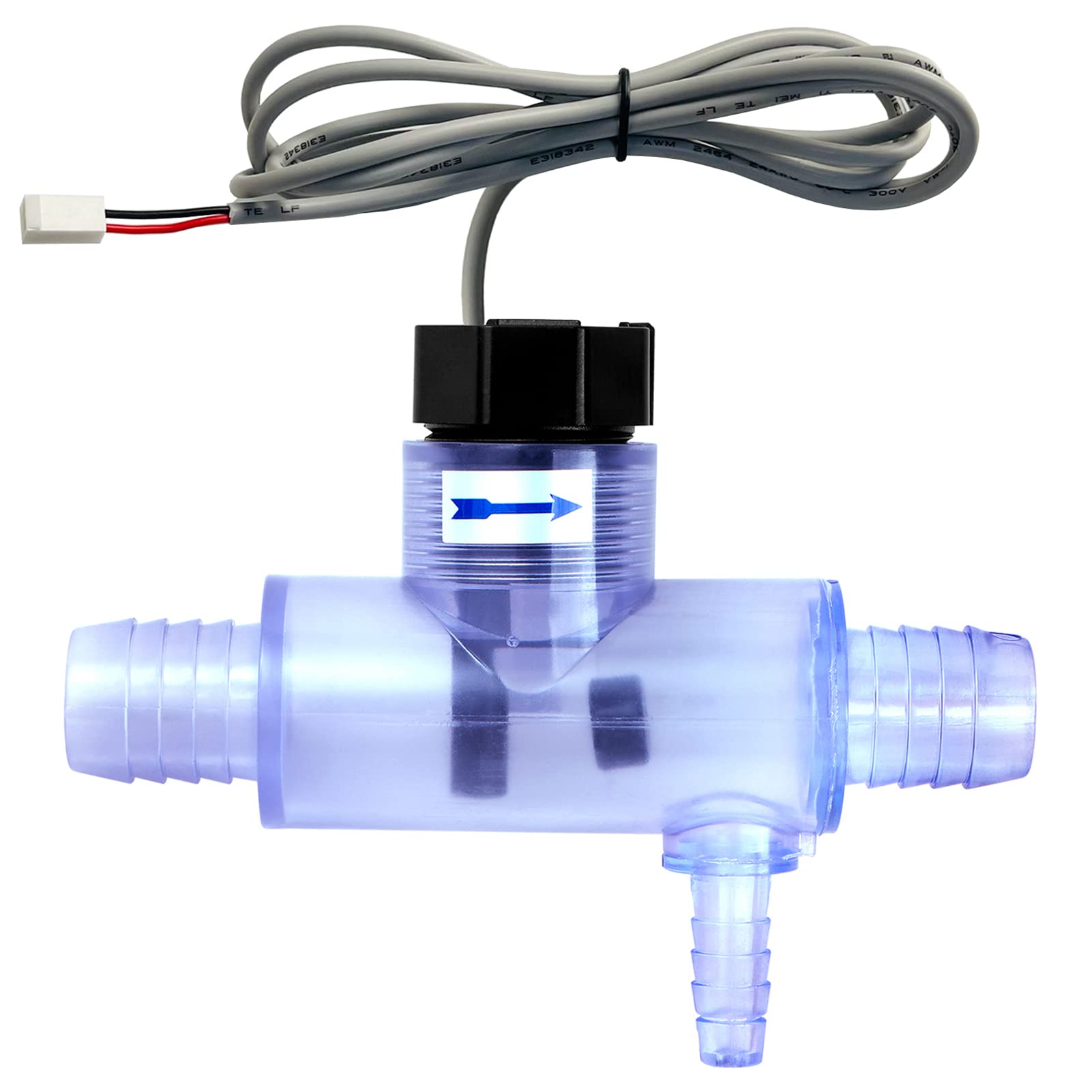

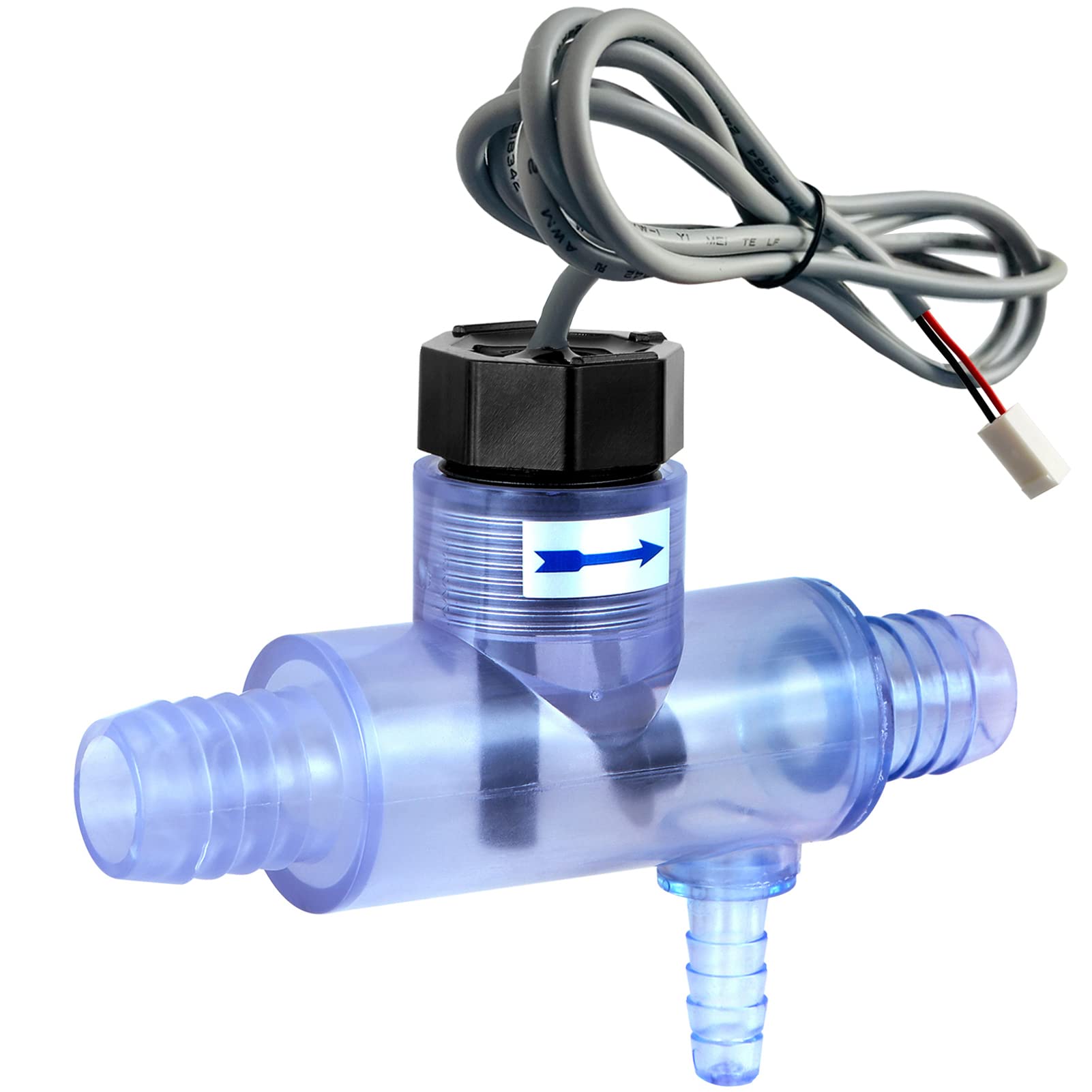

Details: Flow Switch Assembly 2560-040 for Sundance Spas / Jacuzzi Hot Tub / Sweetwater Spas

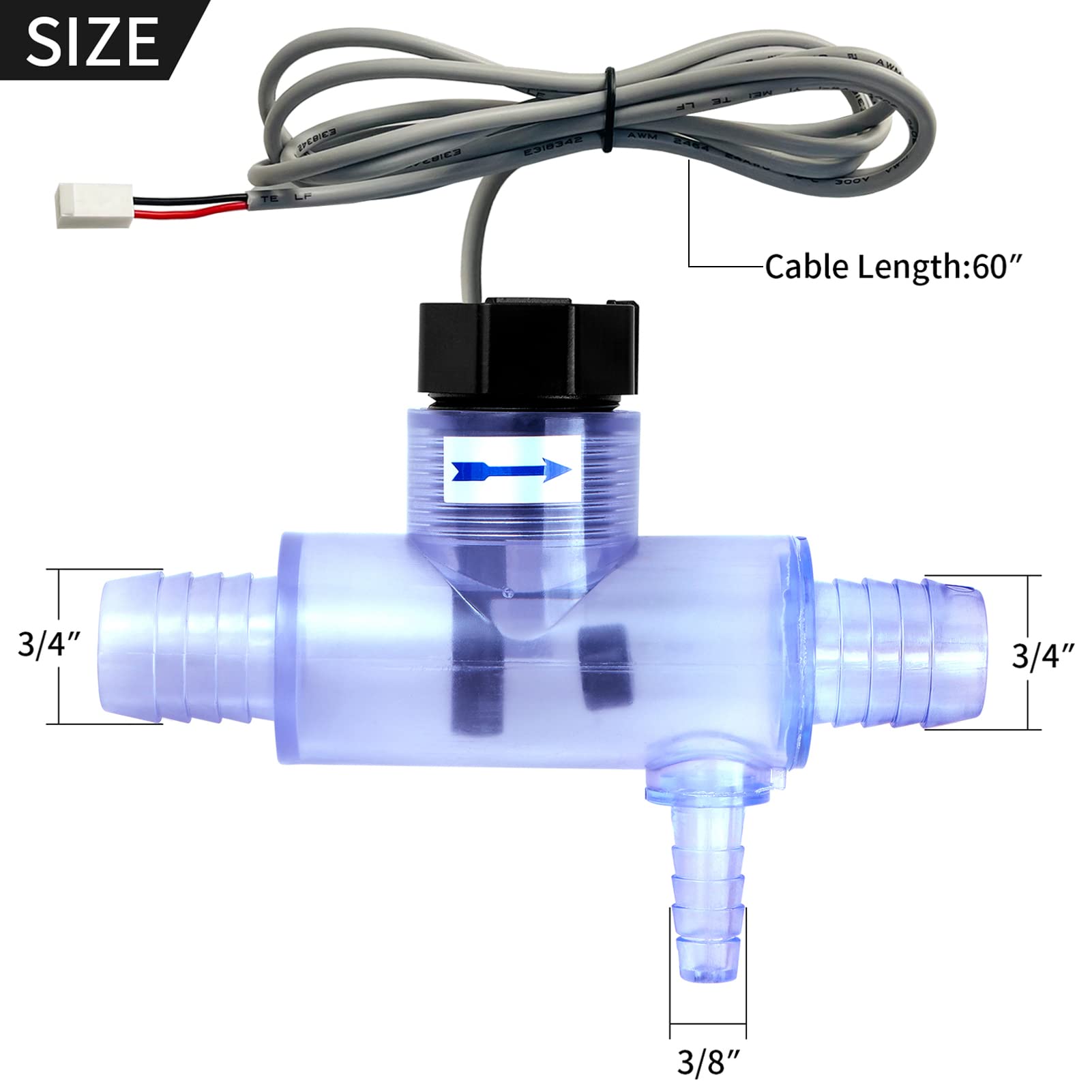

Flow switch with 60" cable and curled finger connectors, directional arrow labels affixed on the clear tee, 3/4 inch hose connections and 3/8 inch freeze line connection. Clear error messages FL1 and FL2. Easy to intall - just unscrew the old flow switch and screw in the new one which saved a service call and a cost in the process.

Used For The Following Sundance Spa Models:
10/2016+ 980 Series: Kingston, Claremont
2016+ 880 Series: Maxxus, Aspen, Optima, Cameo, Altamar, Marin, Capri
2013-03/2017 780 Montclair
2011+ Select Series: Constance, Victoria
2008-03/2017 780 Series: Camden, Certa, Chelsee, Hamilton, Hamilton (w/circ pump), Hartford (w/circ pump), Burlington (w/circ pump)
2007-2012 680 Hartford, Hawthorne Models equipped with a Circ Pump
2007 Hamilton, Chelsee, Certa, and Camden
2005-2006 780 Series: Palermo, Bahia and Cayman
09/2020+ 680 Series
03/2020+ 780 Series
04/2017+ 780 Dover
09/2020+ 680 Alicia
09/2020-12/2020 680 Prado5 and Tacoma
03/2020-03/2021 780 Hanover
2019-03/2021 980 Lisbon/Odessa
03/2018-03/2021 880 Cambria
2011-2018 Select Series
2008-03/2017 780 Series
2008+ 780 Series
2008-2012 680 Burlington Models Equipped with a circulation pump

Used For The Following Jacuzzi Hot Tub Models:
2002-2003 J-320, J-330, and J-340
2004+ J-335,J-345
2007+ J-355,J-365, J-375
2007+ J-230, J-270, and J-280 Models with the Circulation Pump Option
2002-2015 J-300 LED Series (With Curled Finger Connectors)
2011+ JLX, JLXL
2015+ J-500 Series
09/2015+ J-400 Series
2016+ J-300 Convertible Models
02/2020+ J-300 Models
10/2020+ J-200/J-100 Models
JLX 200 and 300 Series Spas

Used For The Following Sweetwater Models:
All 2003-2004 Sweetwater Models, such as Palermo Bahia, Cayman

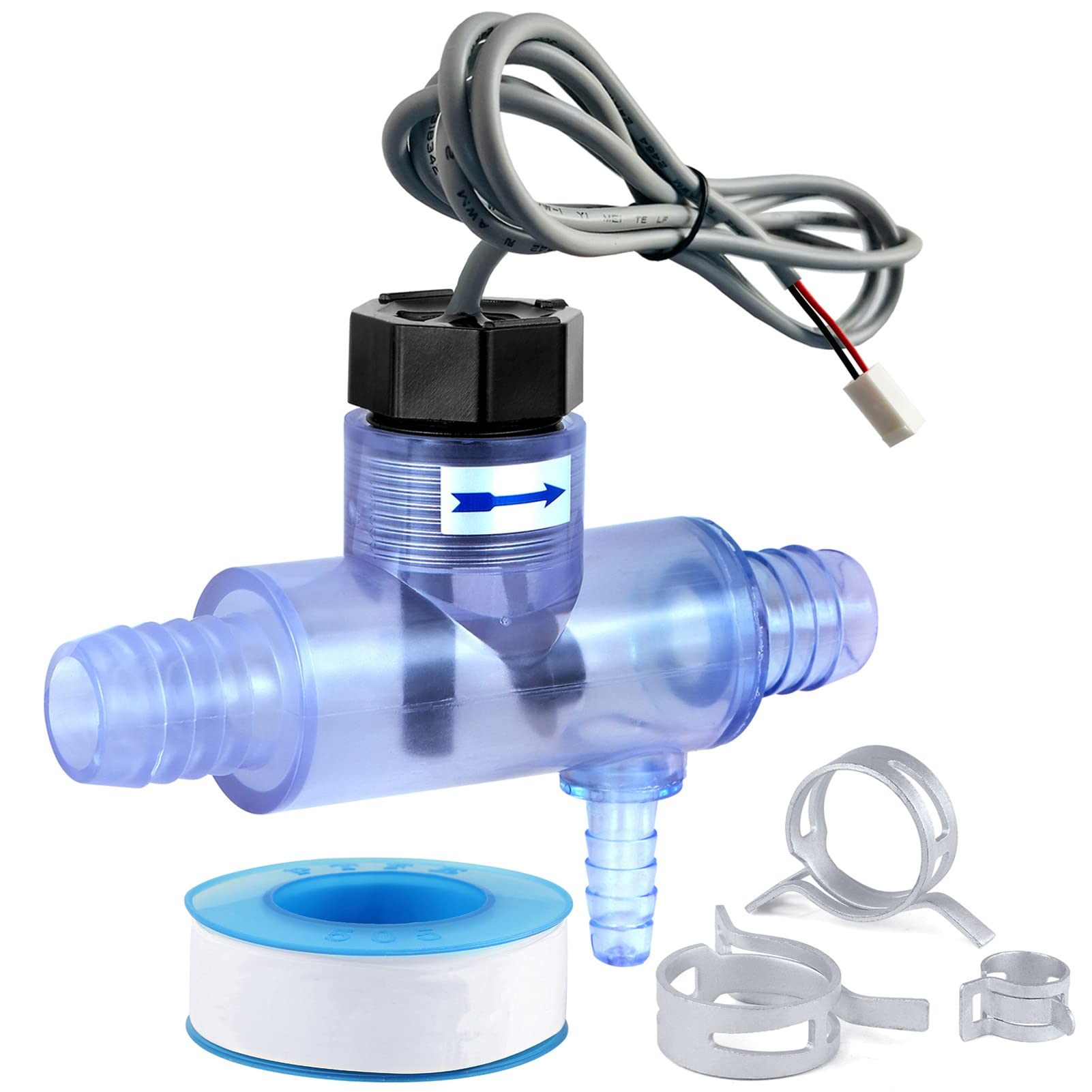

Package Include
• 1 x Flow Switch with Cable
• 1 x Tee Housing
• 1 x Sealant Tape
• 3 x Hose Clamps

Package Dimensions: 6.0 x 4.9 x 2.0 inches
